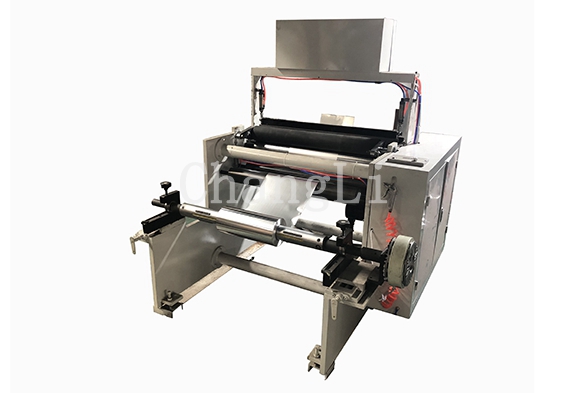

CLFJ-600型自動化複卷機
公布日子:[2018-08-17] 鍵擊率:
有關機型 | FJ-600 | FJ- 800 | FJ-1000 |
卷材幅度 | 600mm | 800mm | 1100mm |
放卷有關直徑 | Φ600mm | Φ600mm | Φ600mm |
收卷有關直徑 | Φ260mm | Φ260mm | Φ260mm |
運行速度 | 10-190m/min | 10-190m/min | 10-190m/min |
總權力 | 2.3KW | 3KW | 3KW |
量體重 | 800kg | 900kg | 1000kg |
等高線度量衡 | 1500×1300×1700mm | 1500×1500×1700mm | 1500×1700×1900mm |
用處:
各機是生產硬紙芯、軟紙芯、等小卷筒紙(人情紙、廣告辭紙、糊牆紙、多種產品包裝紙)的特地設備。
主要特點:
放卷:持續可調節式放卷架
收卷:接連不斷式氣漲軸、計算機進行控製充電與進行表示(可隨意調整收畫軸有關直徑)
隔離:使用上下式進行橫貫刀
主控:微計算機進行控製,具備更加準確的計米及較高的自動化化進行操作使用性能
具備定長精確程度高,收卷甚至於,進行操作著名,形式美觀,使用性能保持穩定等具體功能,還能夠和全自動化減少產品包裝機提供配套支持逐漸形成生產線。
use:
This machine is a special equipment for producing hard paper core, soft paper core, and other small webs (gift paper, advertising paper, wallpaper, various wrapping paper).
Features:
Unwinding: Adjustable unwinding rack
Winding: continuous air-up shaft, computer controlled inflation and opening (can adjust the reel diameter arbitrarily)
Cut off: use upper and lower cross cutter
Master: Microcomputer control with precise metering and high automation performance
It has the functions of high fixed length precision, neat winding, simple operation, beautiful appearance and stable performance. It can also form a production line with automatic shrink packaging machine.
