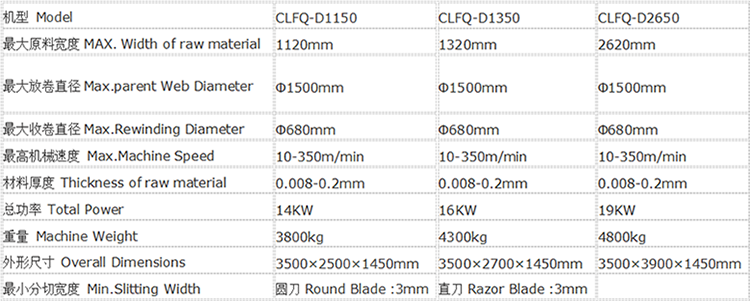

重點技術形式參數Main Technical Parameters：

可依據產品具體要求 較為額外持續訂製設備。

可以使用適用範圍：

要樣兒卷取複卷分切機可用於卷筒紙、塑攝影膠片、鋁箔、PVC、酚醛塑料地膜、無紡布、熔噴布、絕緣體材料等產品包裝材料的分條複卷是對材料開展這麽點兒規格分切的心胸設備。

使用性能及主要特點 ：

1.放卷自動化超聲波波糾正、使用無軸滾壓四山五嶽料，身邊人間隔調整均由滾壓順利完成，磁粉自動化張力進行控製。

2.收卷由兩台份量發電機需要與排頭兵加以聯動管理中心卷取與要樣兒進行聯係參加，雙軸穿插收卷，不要

咬口。

3.排頭兵進行趕上由變價器進行控製，變價發電機需要，加放慢保持穩定迅速。

4..並具有預置自動化計米，進行計算卷徑，告警停工等具體功能。

5.使用圓刀直刀進行分切，分切盤麵甚至於，廢邊自動化去除。

6.整機由PLC考試屏人機垂直麵自動化張力進行控製。

Scope of application

The surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, Non-woven fabric, meltblown fabric ,plastic film and insulating material. It is an ideal equipment for fine-cutting materials.

Performance and characteristics

1.The unwinding is automatically rectified by ultrasonic wave, and the shaftless hydraulic loading and unloading is adopted. The adjustment of the left and right spacing is completed by hydraulic pressure, and the magnetic powder is automatically controlled by tension.

2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.

3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.

4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.

5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.

6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
