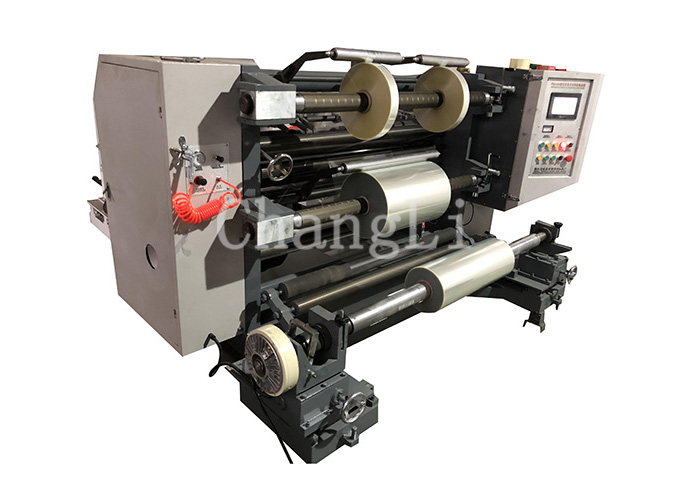

FQJ型分立式複卷分切機
公布日子:[2018-08-20] 鍵擊率:
技術形式參數Parameters
有關機型 | QFJ-700 | QFJ-1100 | QFJ-1300 |
卷材幅度 | 700mm | 1100mm | 1300mm |
放卷有關直徑 | Φ600mm | Φ600mm | Φ600mm |
收卷有關直徑 | Φ400mm | Φ400mm | Φ400mm |
分切運行速度 | 10-180m/min | 10-180m/min | 10-180m/min |
總權力 | 4KW | 4KW | 5.5KW |
量體重 | 1700kg | 1900kg | 2100kg |
等高線度量衡 | 1200×1900×1270 | 1200×2300×1370 | 1200×2500×1370 |
分切幅度 | 圓刀Round Blade:30mm | 直刀Razor Blade :20mm |
可依據產品具體要求 持續訂製設備。
Can be made according to the product requires special equipment.
用處:
各機可用於BOPP、PET、PE、PVC、鋁箔、紙頭、多種卷筒狀材料的分門別類。
主要特點:
1、本機進行所在分立式分條機。
2、進行相信微機進行控製屏,進行操作更加便利。
3、收、放卷張力磁粉進行控製。
4、走料自動化計米,放卷光電自動化糾正。
5、具有邊現世寶風送或卷取設置。
6、雙氣脹軸收卷,分切端麵平坦。
7、鋁箔、紙頭分切須購買圓刀輔件。
USES:
This machine is suitable for BOPP, PET, PE, PVC, aluminum foil, paper, the classification of the drum all material.
Features:
1, the machine belong to vertical slitting machine.
2, independent microcomputer control panel, easy to operate.
3, closed, tension magnetic powder control.
4, go automatic meter, rolling photoelectric automatic adjustment.
5, the edge waste wind send or coiling device.
6, double winding, gassing axis cutting face is flat and level.
7, aluminum foil, paper cutting and must choose and circular knife accessaries.
