重點技術形式參數：Main Technical Parameters

可依據產品具體要求 持續訂製設備。

Can be made according to the product requires special equipment.

產品作出說明

可以使用適用範圍

本機可用於多種特大型卷材的分切，如30g/m2-300g/m2高調紙、白卡紙、淋膜紙、鋁箔、PVC酚醛塑料、錫紙等卷材的分切、複卷等。

使用性能及主要特點

1. 各機使用相對異步伺服機構發電機(份量發電機)進行控製、自動化錐度張力，中心卷取方法。排頭兵使用變價調價，繼續維持加快中平均運行。

2. 自動化計米、告警具體功能。收卷使用A、B氣脹軸整體結構，卸妝進行操作更加便利。

3. 放卷使用光電自動化糾正修正係統，使不平整材料能正常化分切。

4. 圓刀進行分切廢邊自動化進行排放設置。

5. 油壓式自動化上料，配氣脹軸。

6.路軌式自動化下料設置。

product manual

Scope of application

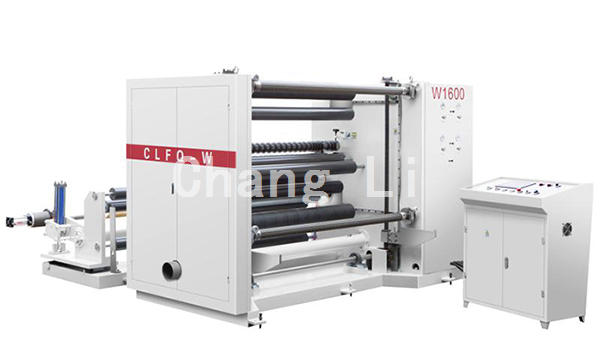

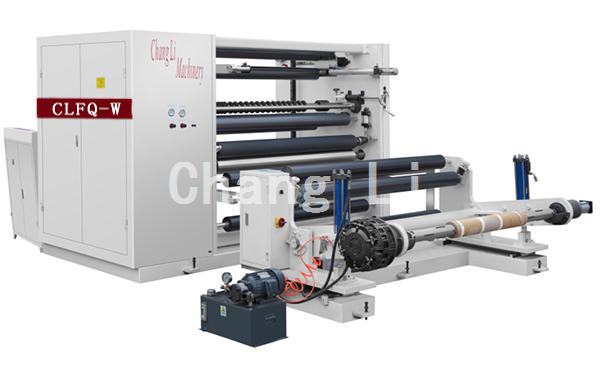

This machine is suitable for the slitting of various super-large coils, such as slitting and rewinding of 30g/m2-300g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.

Performance and characteristics

1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension and center winding method. The main engine adopts frequency conversion speed regulation to maintain balanced operation during acceleration.

2. Automatic metering and alarm function. The winding adopts the A and B air expansion shaft structure, and the unloading operation is convenient.

3. Unwinding adopts photoelectric automatic correction correction system to make irregular materials cut normally.

4. The circular knife cuts the waste side automatic discharge device.

5. Hydraulic automatic feeding, with air expansion shaft.

6. Rail type automatic cutting device.
