重點技術形式參數：Main Technical Parameters

可依據產品具體要求 持續訂製設備。

Can be made according to the product requires special equipment.

作出說明及主要特點:

1、該型分切機比較合適於分切PE、PP、PET,PVC等酚醛塑料地膜，合成膜，

膜，彩色印刷膜、卷筒紙等。是地膜、薄片關於二次進行加工還有彩色印刷產品包裝企業的心胸有關機型。

2、整機由PLC進行齊集進行控製（三份量發電機）並使用考試屏人機垂直麵對整機開展進行齊集進行操作。

3、放卷使用氣動工具煞車進行刹車器，由PLC自動化進行計算卷徑達成自動化張力進行控製。

4、進行繪製進行控製由關於一台份量變價發電機需要，達成恒線運行速度進行控製，並隔離收放卷張力彼此之間的相互之間產生相應作用。

5、收畫軸使用氣漲軸收卷由二台份量變價發電機進行相信需要，收卷張力進行控製，依據收卷有關直徑，分切厚薄，進行設立張力等形式參數，由PLC演算達成自動化張力遞加。（可選滑差氣漲軸）

6、收畫軸四山五嶽壓輥進行聚散使用氣動工具設置，壓強大大小小借助調壓閥進行控製。

7、放卷用無軸加以裝卸料，氣動工具鎖緊，電玩調寬窄，料卷氣動工具起伏，加以裝卸料更加便利、工作效率高。

8、放卷EPC糾編設置可更加準確進行控製端麵精確程度。

9、分切使用直刀分切設置，端麵甚至於，有邊現世寶風送。（紙頭需購買圓刀分切設置）

10、整機由同時進行帶、同時進行輪為進行趕上方法，落實與鎖緊使用氣動工具方法

11、進行繪製導輥：靜平均鋁鋁合金導輥，要樣兒動脈血管硬化采用相應辦法解決

12、係統具備開始運行加以緩衝、止血防鬆、計米定長，定速、卷徑演算等分切具體功能。

13、係統具備使內容更加完整的機、電、氣緊密化設計，並使用具有的進行保護具體措施。

Description and characteristics:

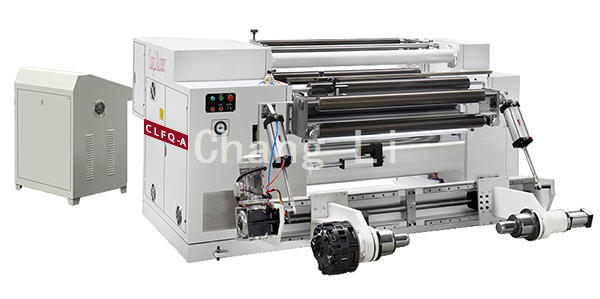

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

Film, color film, web, etc. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

3. The unwinding adopts pneumatic brake brake, and the automatic tension control is realized by PLC automatically calculating the winding diameter.

4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

6. The upper and lower pressure roller of the take-up reel adopts a pneumatic device, and the pressure is controlled by a pressure regulating valve.

7. Unwinding with shaftless loading and unloading material, pneumatic locking, narrow electric width adjustment, pneumatic lifting of material roll, convenient loading and unloading, high efficiency.

8. The unwinding EPC correction device can accurately control the end face precision.

9. The slitting adopts the straight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to purchase round knife slitting device)

10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
