重點技術形式參數：Main Technical Parameters

可依據產品具體要求 較為額外持續訂製設備。

Can be made according to the product requires special equipment.

產品作出說明

可以使用適用範圍

本機可用於多種大而無當型卷材的分切，如30g/m2-400g/m2高調紙、白卡紙、淋膜紙、鋁箔、PVC酚醛塑料、錫紙等卷材的分切、複卷等。

使用性能及主要特點

1. 各機使用相對異步伺服機構發電機(份量發電機)進行控製、自動化錐度張力，中心卷取方法。排頭兵使用變價調價，繼續維持加快中平均運行。

2. 自動化計米、告警具體功能。收卷使用A、B氣脹軸整體結構，卸妝進行操作更加便利。

3. 放卷使用光電自動化糾正修正係統，使不平整材料能正常化分切。

4. 自動化調刀係統（參加你有必要的分切規格關於一次排好切削工具），圓刀進行分切廢邊自動化進行排放設置。

5. 油壓式自動化四山五嶽料，無軸裝卷。

6.路軌式自動化下料設置。

product manual

Scope of application

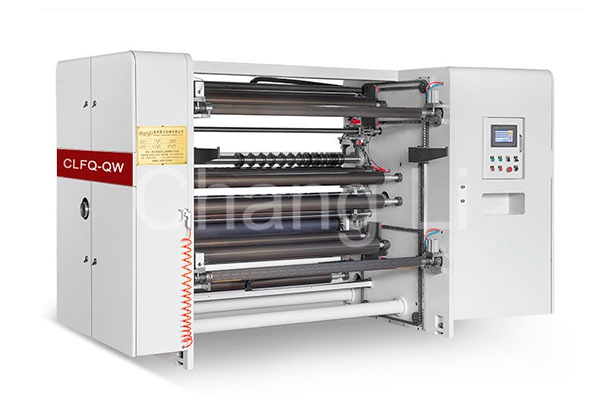

This machine is suitable for the slitting and rewinding of various super large coils, such as 30g/m2-400g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.

performance and characteristics

1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, and center winding mode. The host adopts frequency conversion speed regulation to maintain a balanced operation during acceleration.

2. Automatic meter counting and alarm function. The rewinding adopts A and B inflatable shaft structure, which is easy to unload and operate.

3. The unwinding adopts the photoelectric automatic correction system to make the irregular materials can be slit normally.

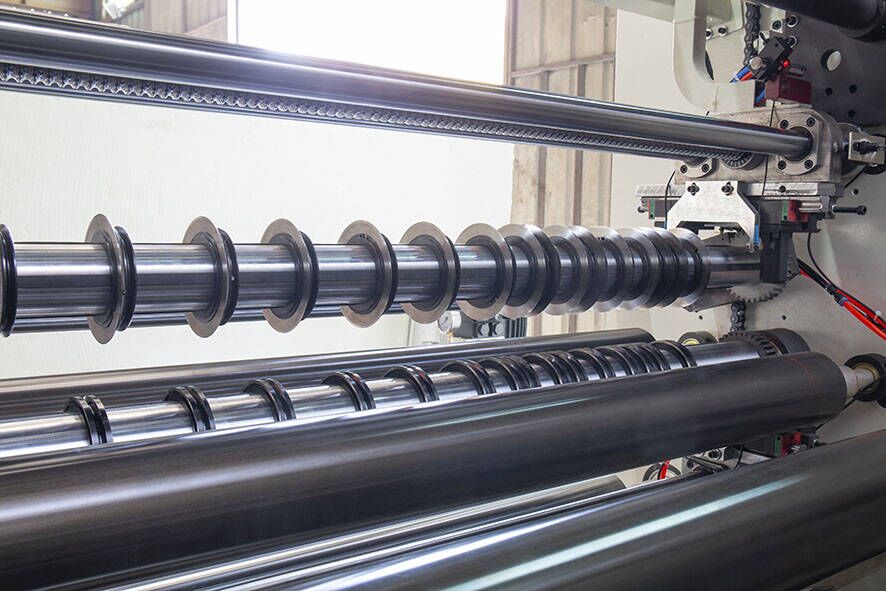

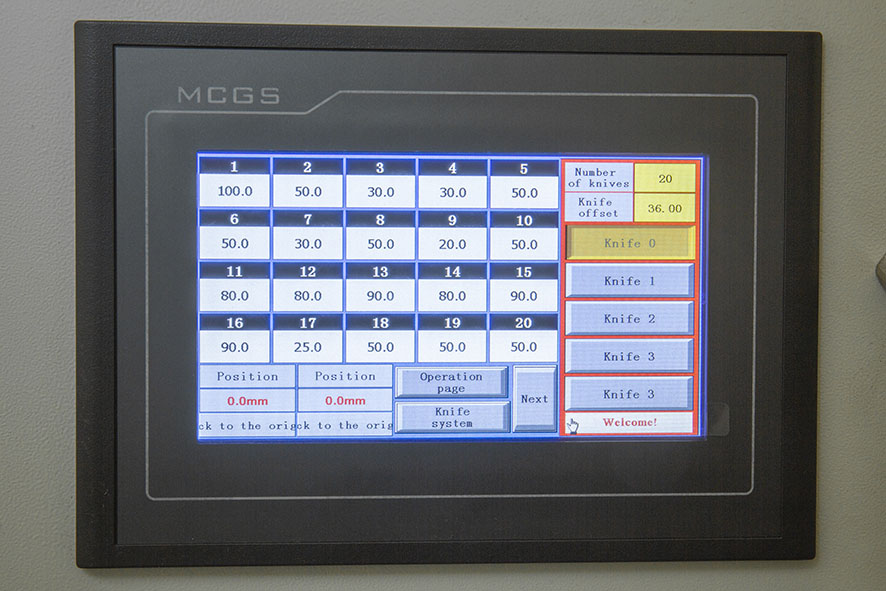

4. Automatic tool adjustment system (input the slitting specifications you need to arrange the tools at one time), and the automatic discharge device for round knife longitudinal cutting waste.

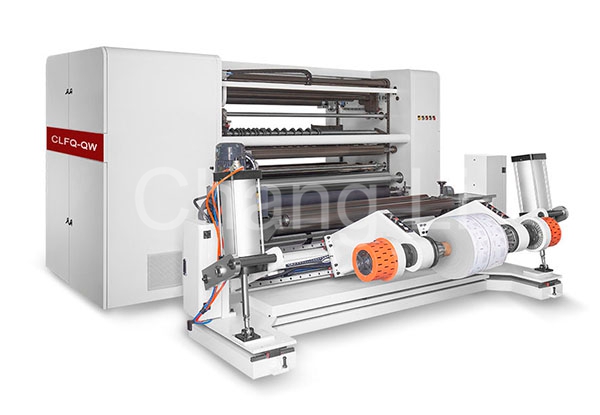

5. Hydraulic automatic loading and unloading, without shaft loading.

6. Guide rail type automatic unloading device.
